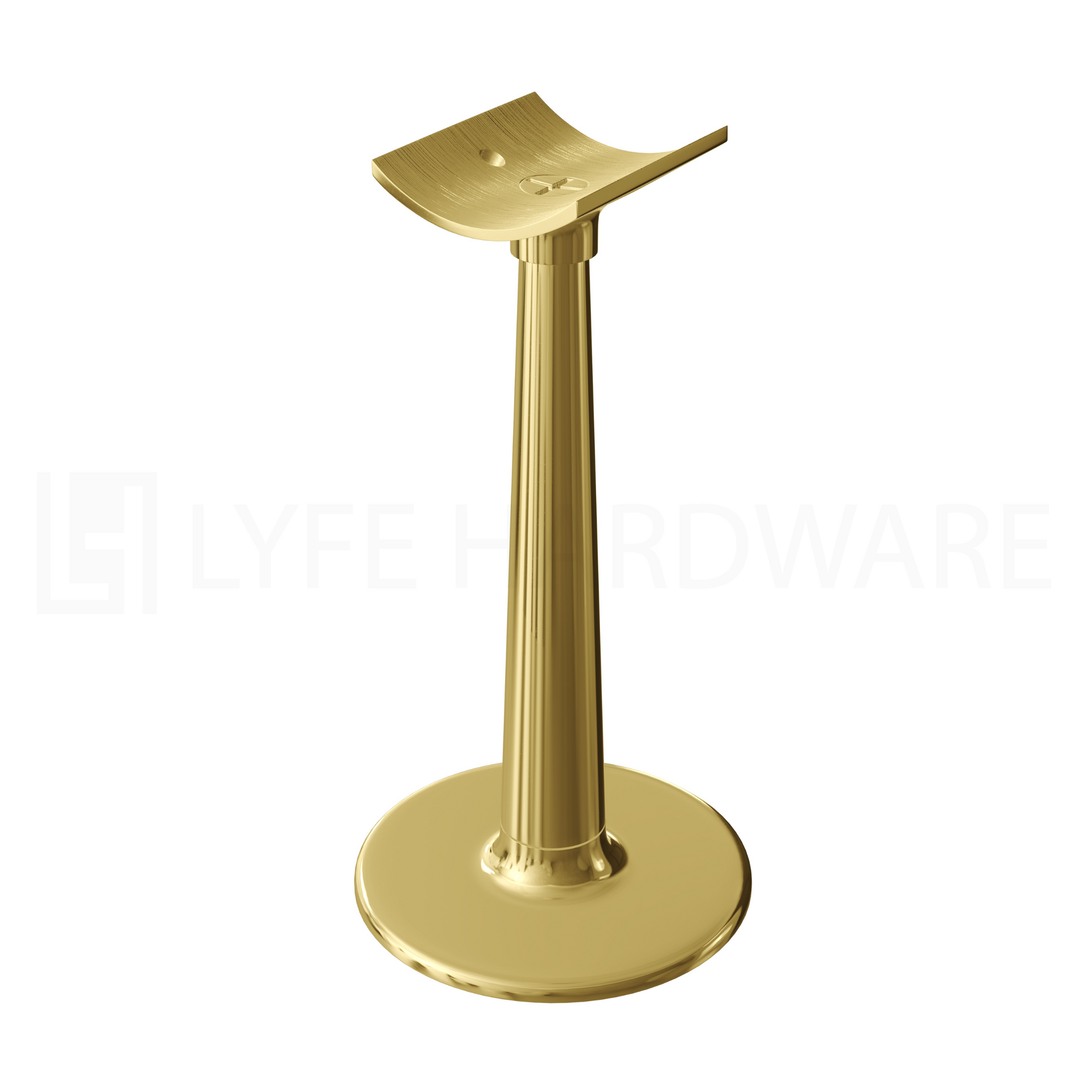

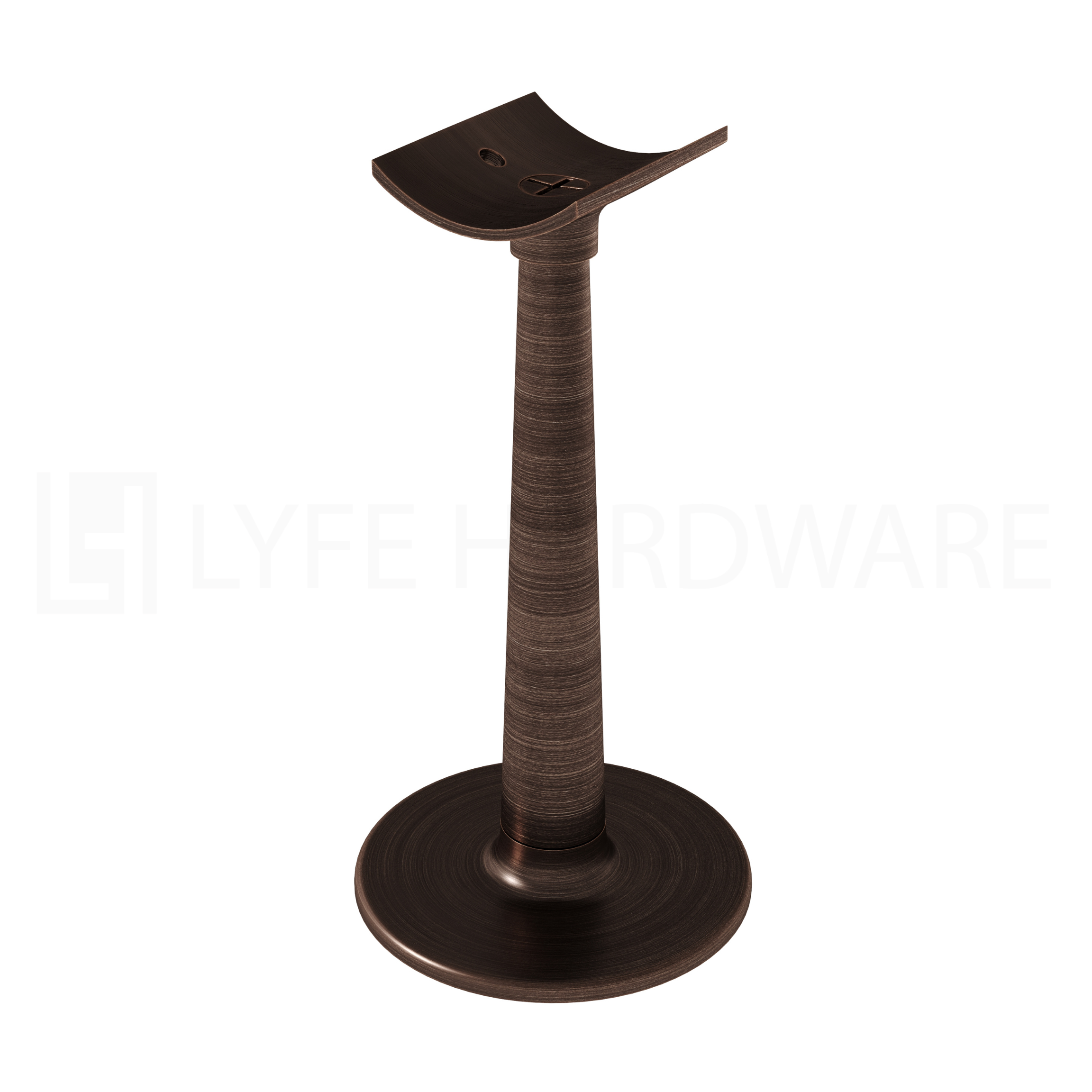

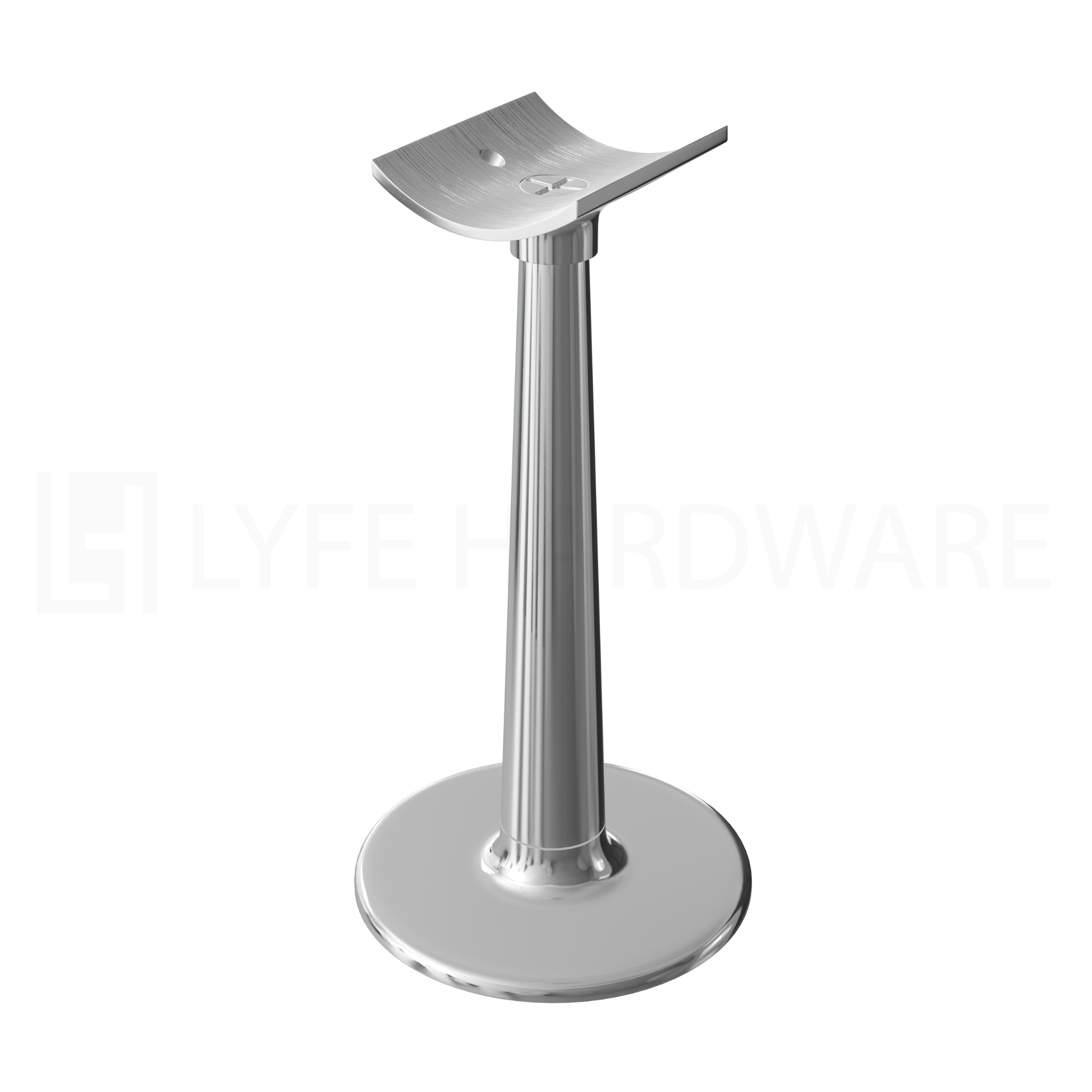

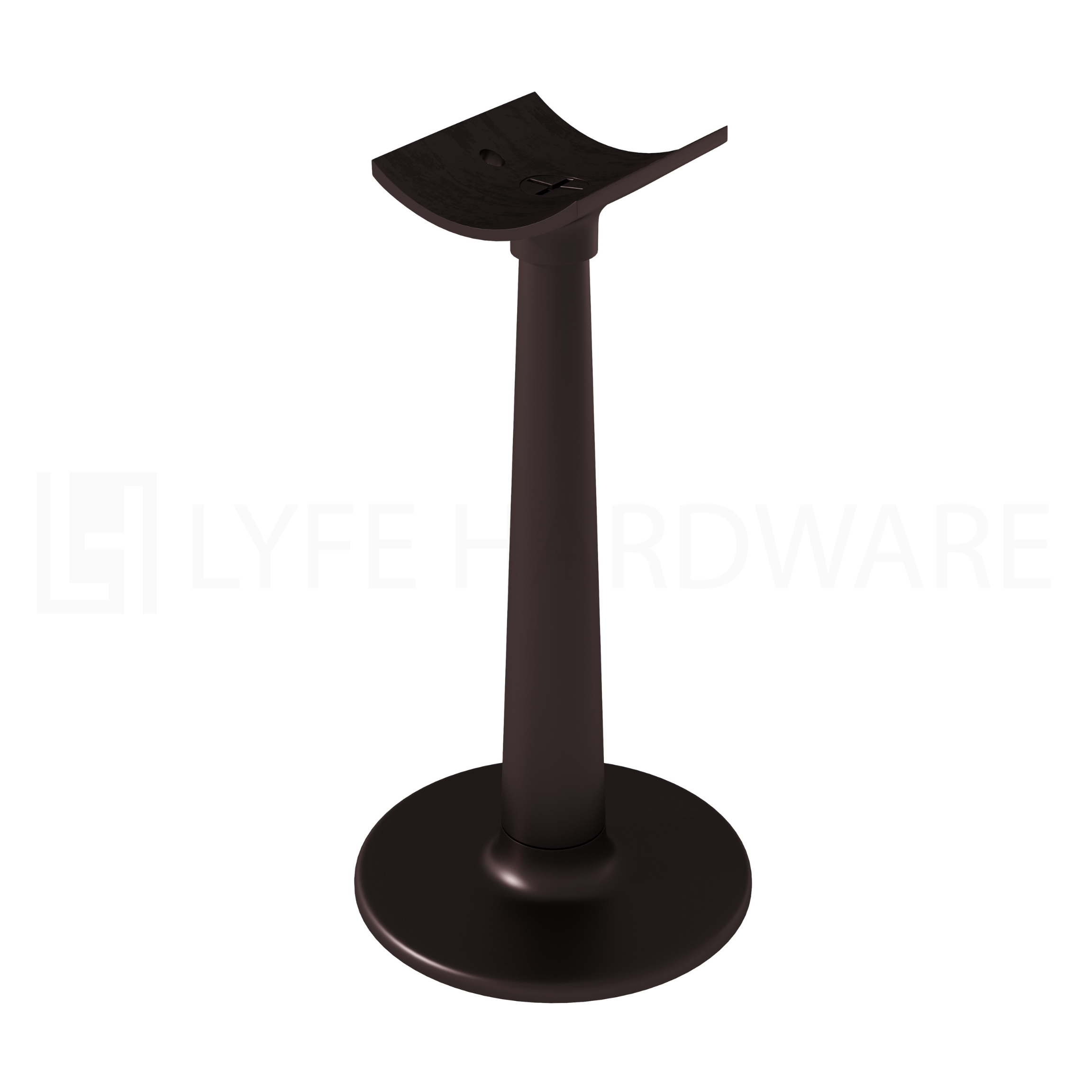

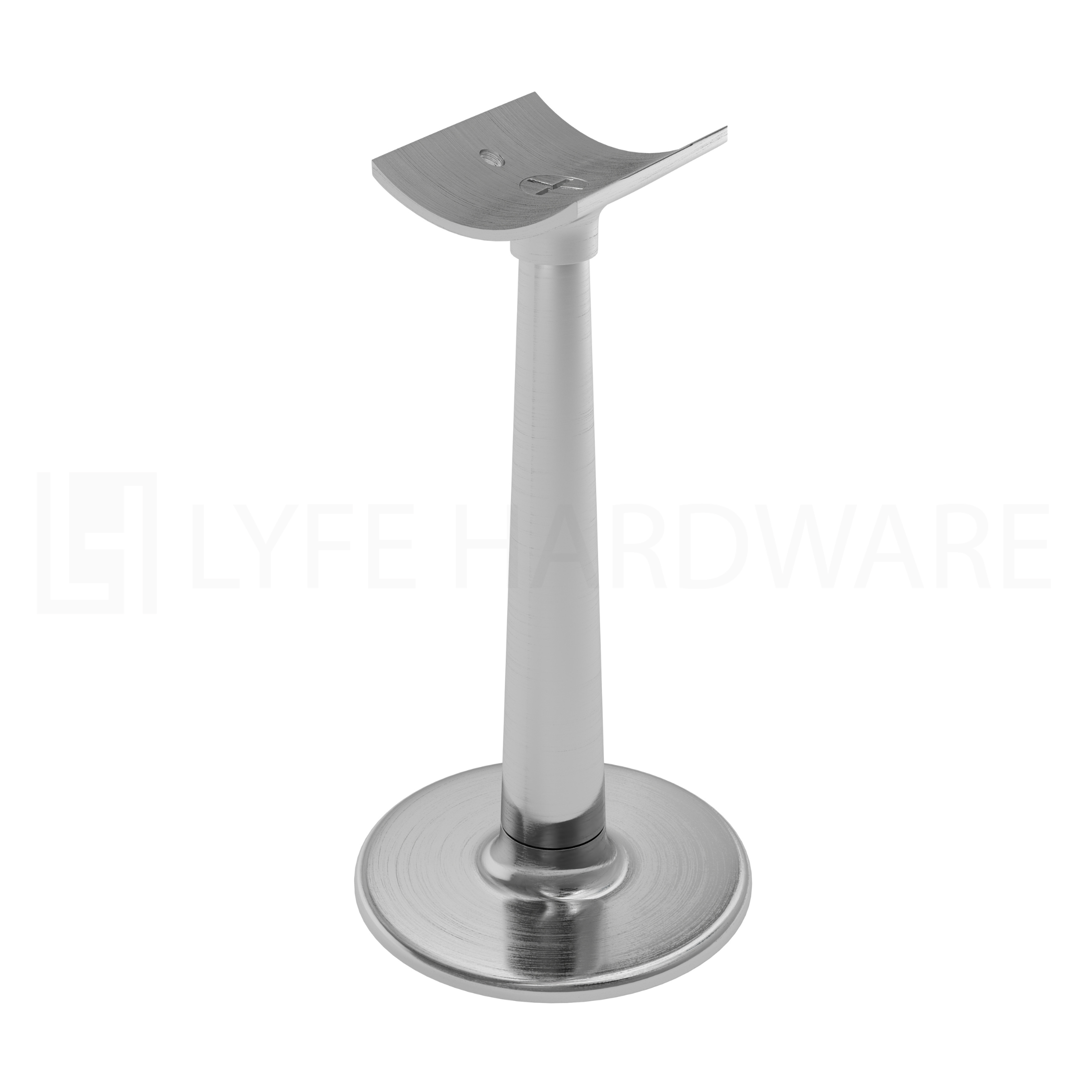

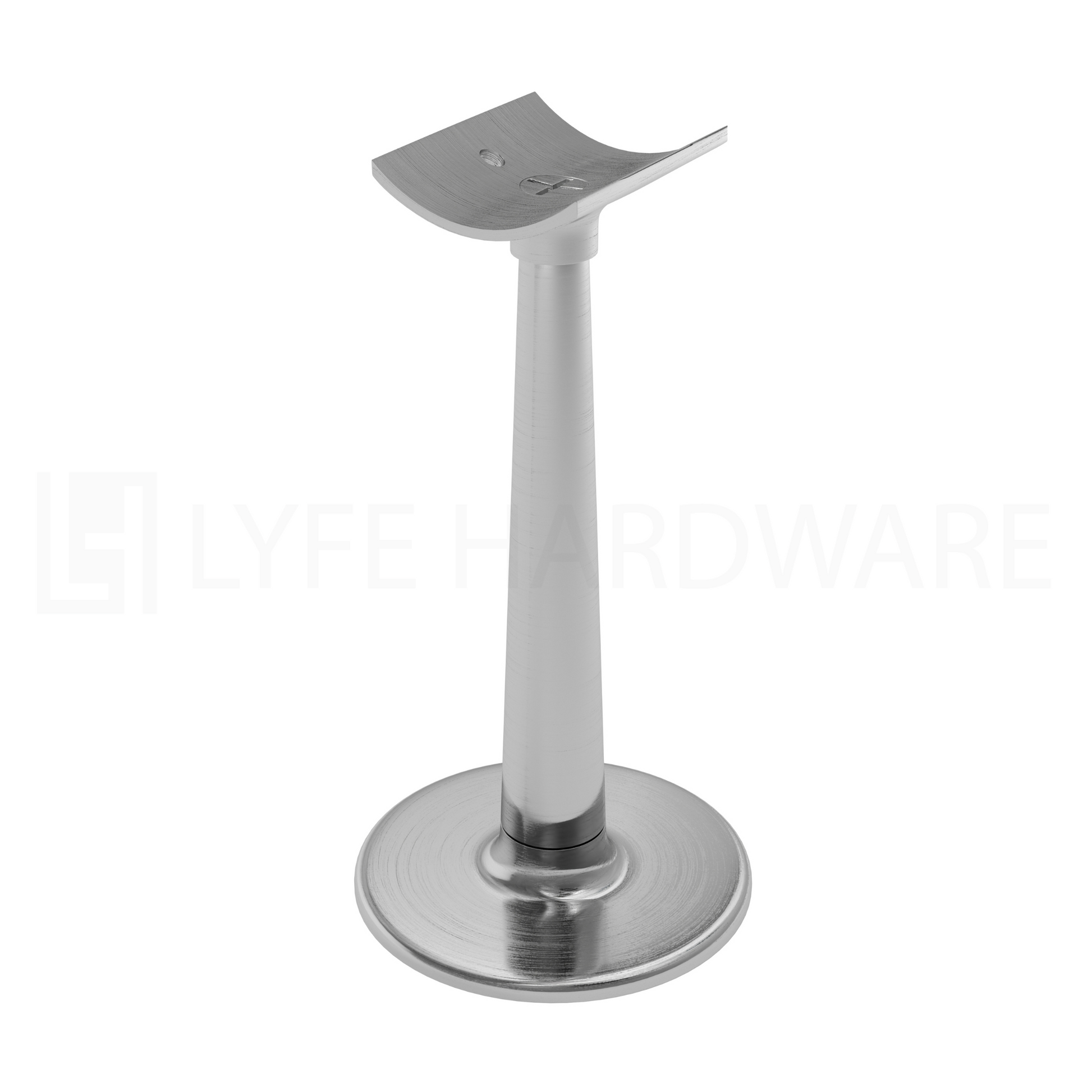

Made from premium metals, this undrilled modular handrail bracket is designed for adaptability, giving you the freedom to drill mounting holes to fit your specific needs. Its hidden hardware ensures a clean and modern appearance, making it an excellent choice for both residential and commercial spaces. The modular design allows it to integrate seamlessly with various handrail configurations, providing a versatile and polished solution for your railing system.

Installation is straightforward—drill the mounting holes to match your setup, secure the bracket to a sturdy surface, and attach the handrail for a secure fit. Available in multiple finishes, this bracket complements a wide range of handrail styles for a cohesive and professional look.

Features
• Made from premium metals
• Available in different sizes and finishes
• Includes all necessary mounting hardware
• Easy to install for secure handrail support
• Modular design for adaptable configurations
• Undrilled construction for a seamless, modern appearance

Installation Tips

1. Secure the mounting plate to the wall using a hanger bolt and attach the matching diameter tube to the saddle for a precise fit
2. Insert the tubing into the bracket and secure it firmly using the set screw.
3. Position the brackets at each end of the metal tubing, ensuring they are spaced no more than four feet apart.

For 38.1mm (1.5") OD

• Width: 76.2mm (3")
• Back Plate Diameter: 76.2mm (3")
• Diameter: 38.1mm (1.5") OD Tubing

Tech Specs 38.1mm (1.5") OD

For 50.8mm (2") OD

• Width: 76.2mm (3")
• Back Plate Diameter: 76.2mm (3")
• Diameter: 50.8mm (2") OD Tubing

Tech Specs 50.8mm (2") OD

Includes

• 1pc – 7.94mm-18 x 50.8mm (5/16-18 x 2") PFH hanger bolt (long screw)
• 2pcs – #8 x 15.88mm (5/8") PFH Self-Drilling Set Screw

Care & Maintenance

The care required for your handrails will depend on the chosen finish. Over time, you may notice typical wear such as scuffs, scratches, or dirt. To keep your foot rail looking its best, follow our Cleaning & Maintenance Guide, which provides detailed instructions for cleaning and maintaining all finishes.

Please note: Our tubing and components, like brackets and endcaps, might have slight color differences when they arrive. This is completely normal and will even out naturally over time as the brass develops a beautiful patina—a natural process that happens with exposure to air and moisture.
