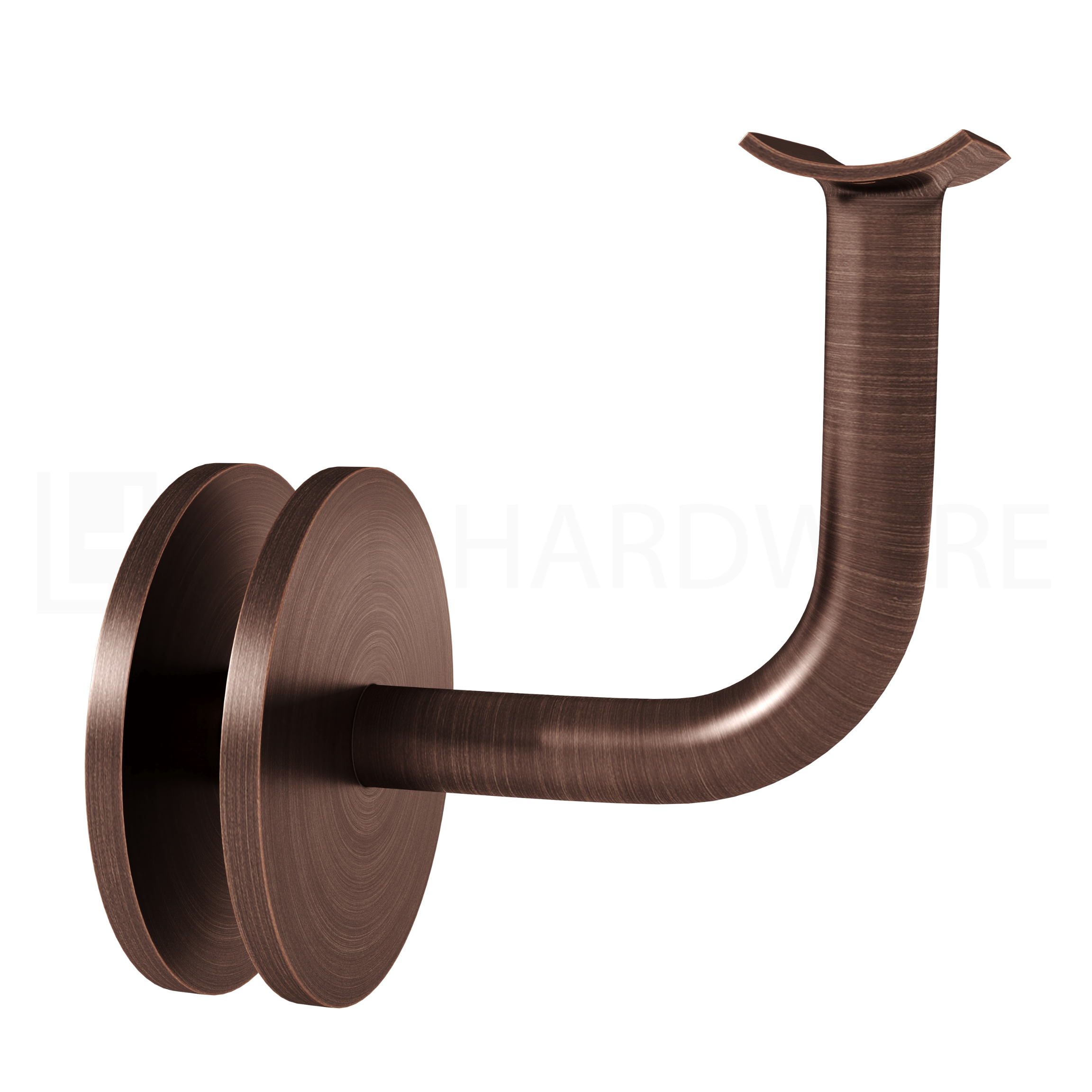

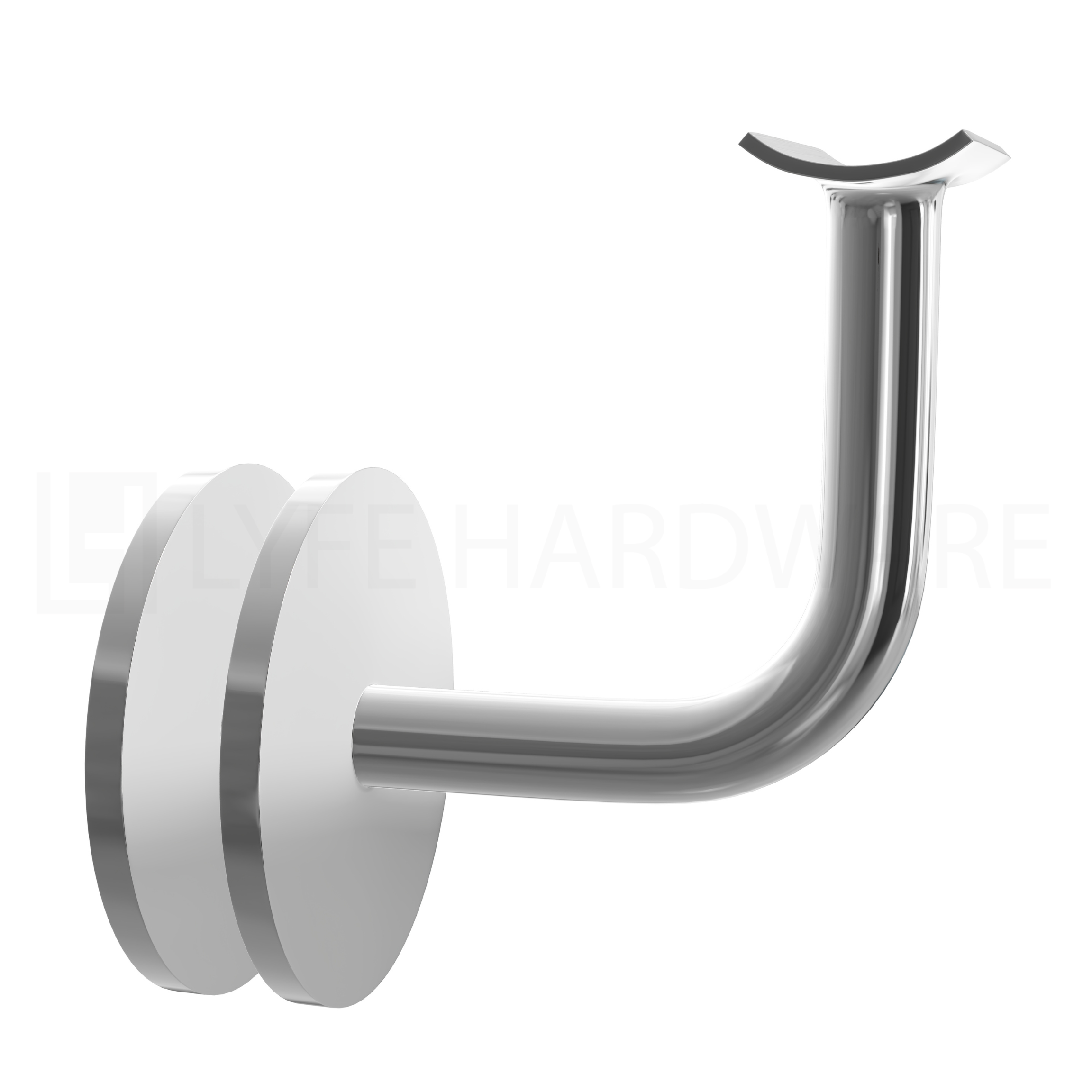

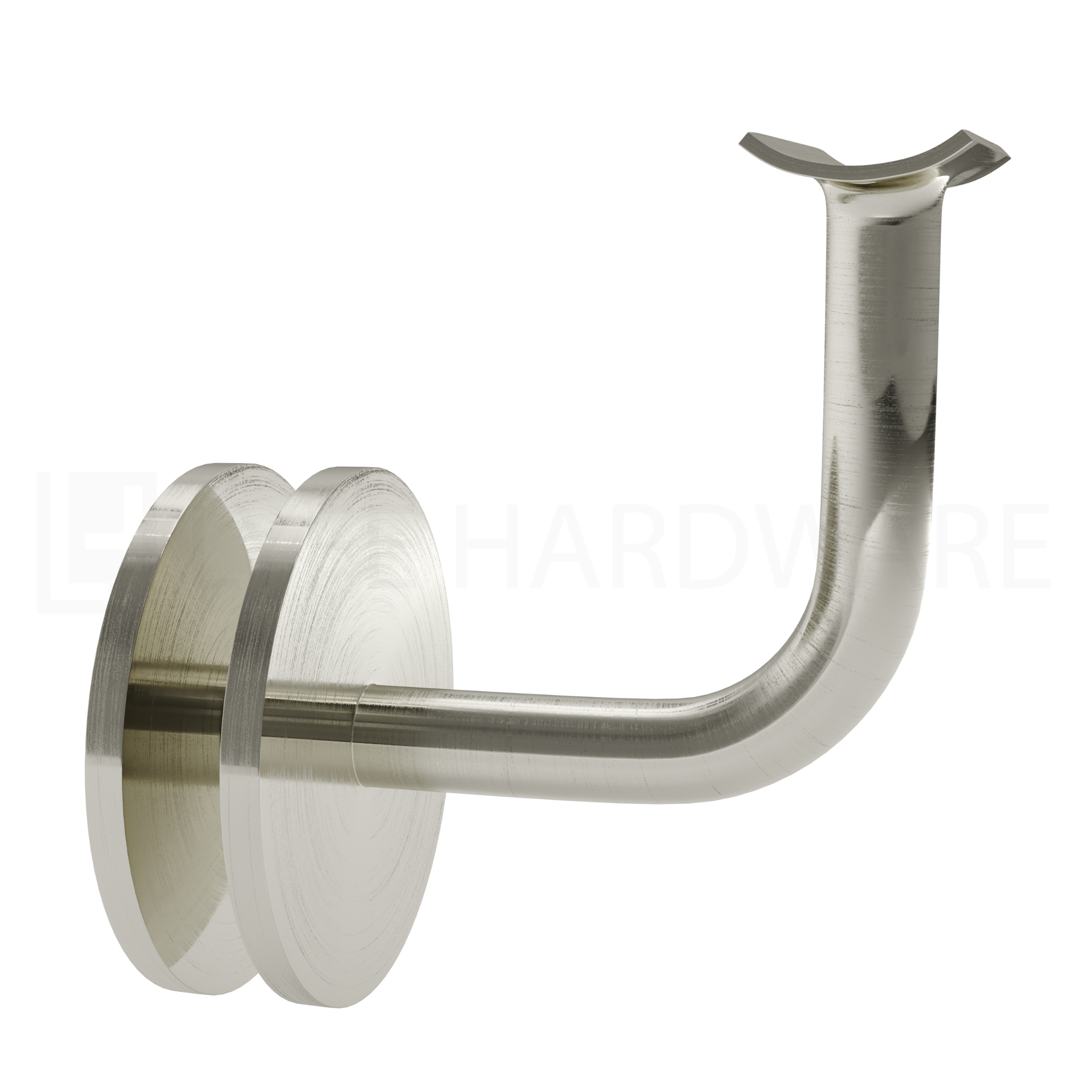

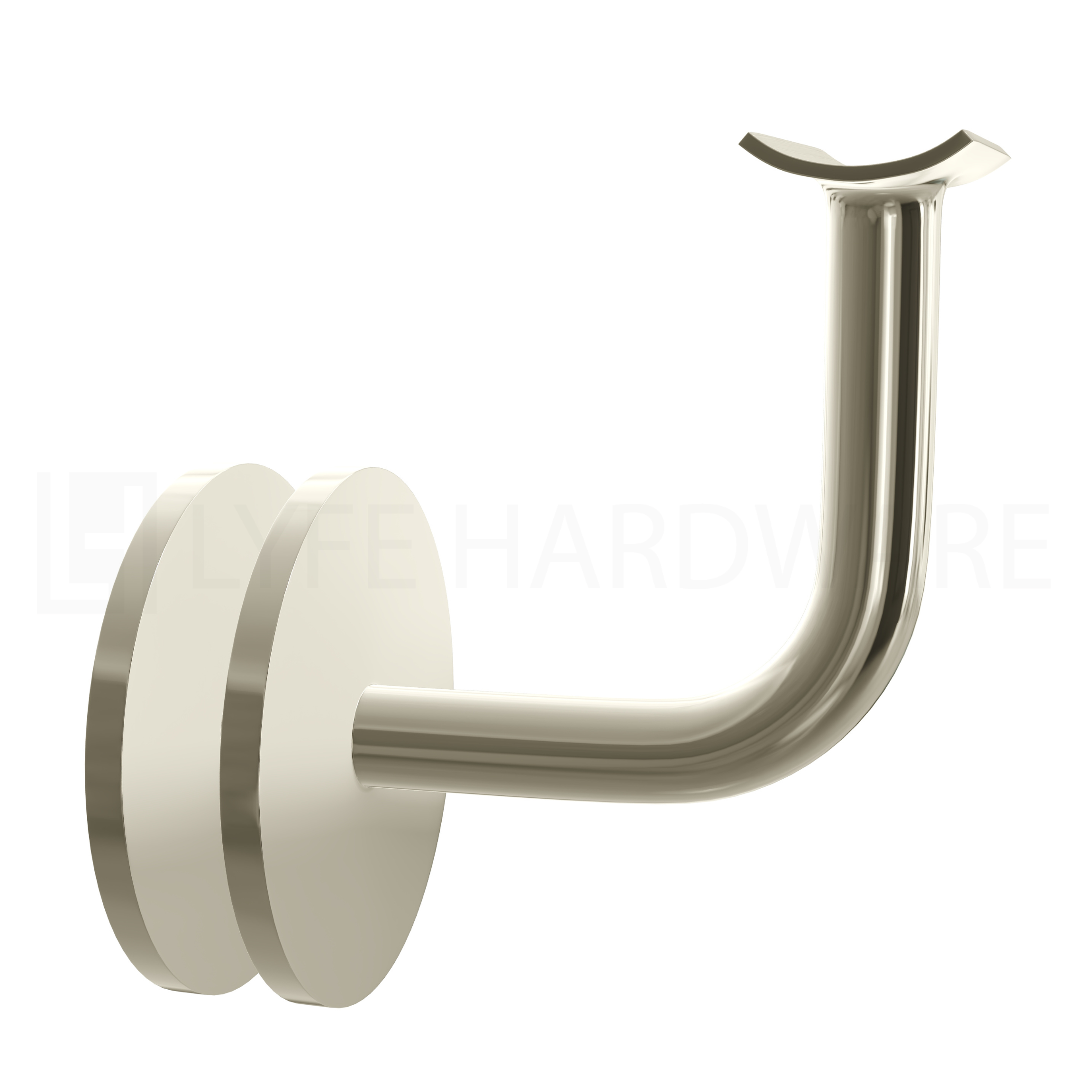

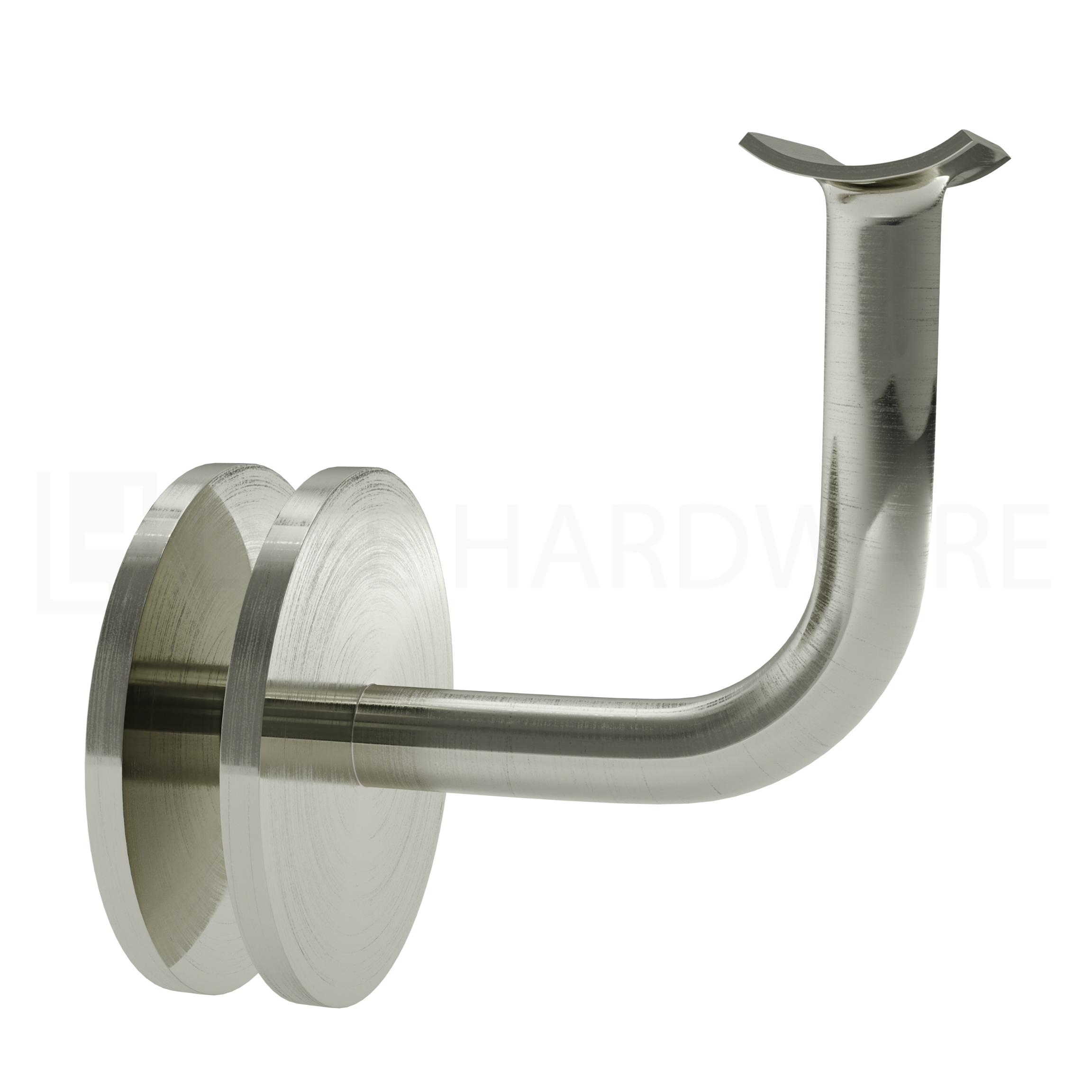

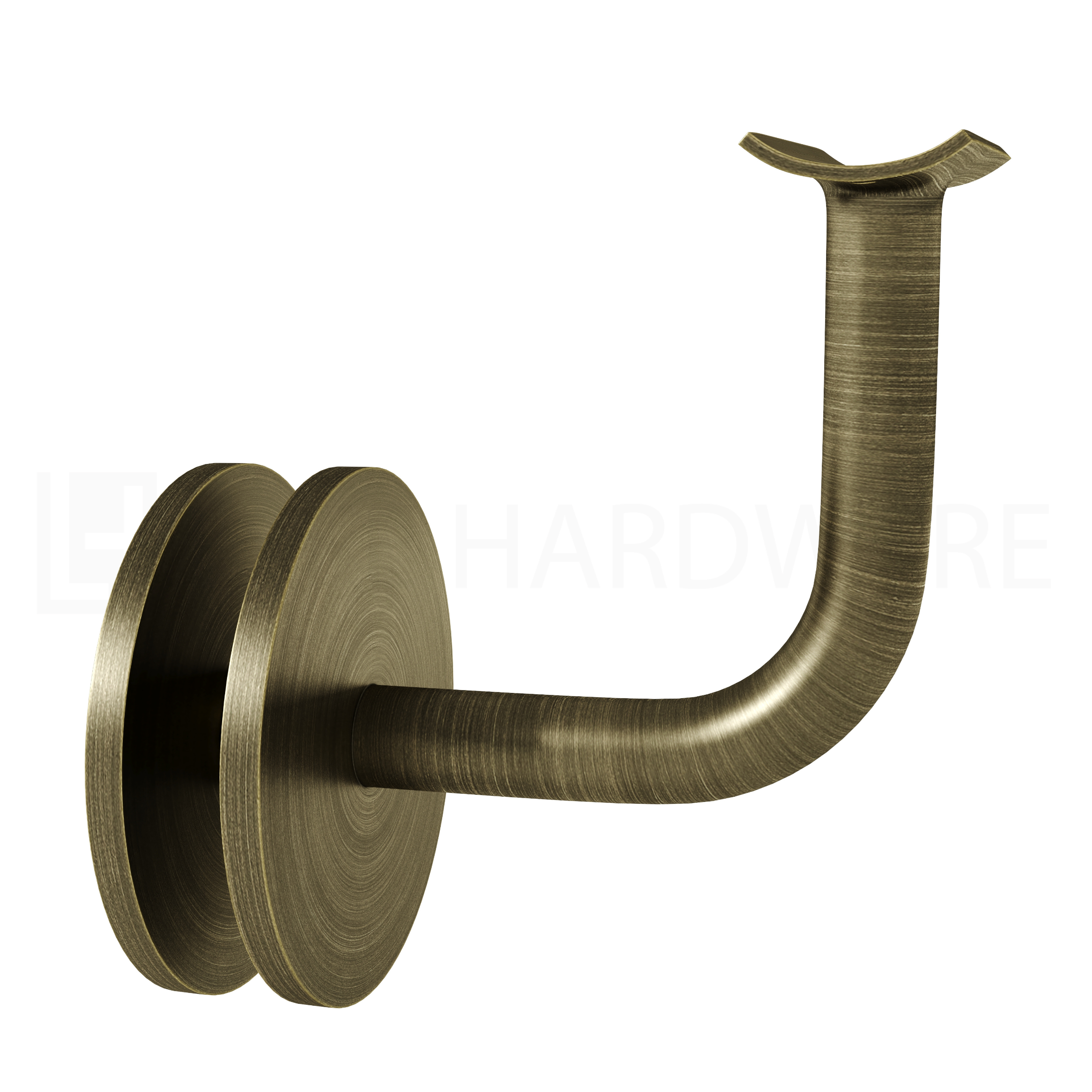

Made from premium metals, the glass mount handrail bracket is engineered specifically for glass panel installations. Its design allows you to attach a handrail without compromising the clean, open aesthetic of your glass railing. Ideal for residential and commercial spaces, this bracket pairs seamlessly with various handrail styles, including wood, metal, or flat bar.

Installation is straightforward—secure the bracket to your glass panel using the included hardware, then attach your handrail to the saddle. Available in multiple finishes, this bracket ensures a cohesive and polished look for your railing system.

Features
• Made from premium metals
• Available in different sizes and finishes
• Includes all necessary mounting hardware
• Easy to install for secure handrail support
• Designed for mounting handrails to glass panels

Installation Tips

1. Detach the back plate from the front plate and position them on opposite sides of the glass. Secure the assembly using the provided 5/16 screw. Ensure that the glass is between the rubber gaskets.
2. Insert the tubing into the bracket and secure it firmly using the self-drilling screws.
3. Position the brackets at each end of the metal tubing, ensuring they are spaced no more than four feet apart

For 38.1mm (1.5") OD
• Width: 66.8mm (2.63")
• Back Plate Diameter: 63.5mm (2.5")
• Diameter: 38.1mm (1.5") OD Tubing

Tech Specs 38mm( 1.5")

For 50.8mm (2") OD
• Width: 66.8mm (2.63")
• Back Plate Diameter: 63.5mm (2.5")
• Diameter: 50.8mm (2") OD Tubing
Tech Specs 51mm( 2")

Includes
• 1pc – 5/16 flat head long screw (no length specified)
• 2pcs – #8 x 19.05mm (¾") PFH Self-Drilling Set Screw

Care & Maintenance

The care required for your handrails will depend on the chosen finish. Over time, you may notice typical wear such as scuffs, scratches, or dirt. To keep your foot rail looking its best, follow our Cleaning & Maintenance Guide, which provides detailed instructions for cleaning and maintaining all finishes.

Please note: Our tubing and components, like brackets and endcaps, might have slight color differences when they arrive. This is completely normal and will even out naturally over time as the brass develops a beautiful patina—a natural process that happens with exposure to air and moisture.
