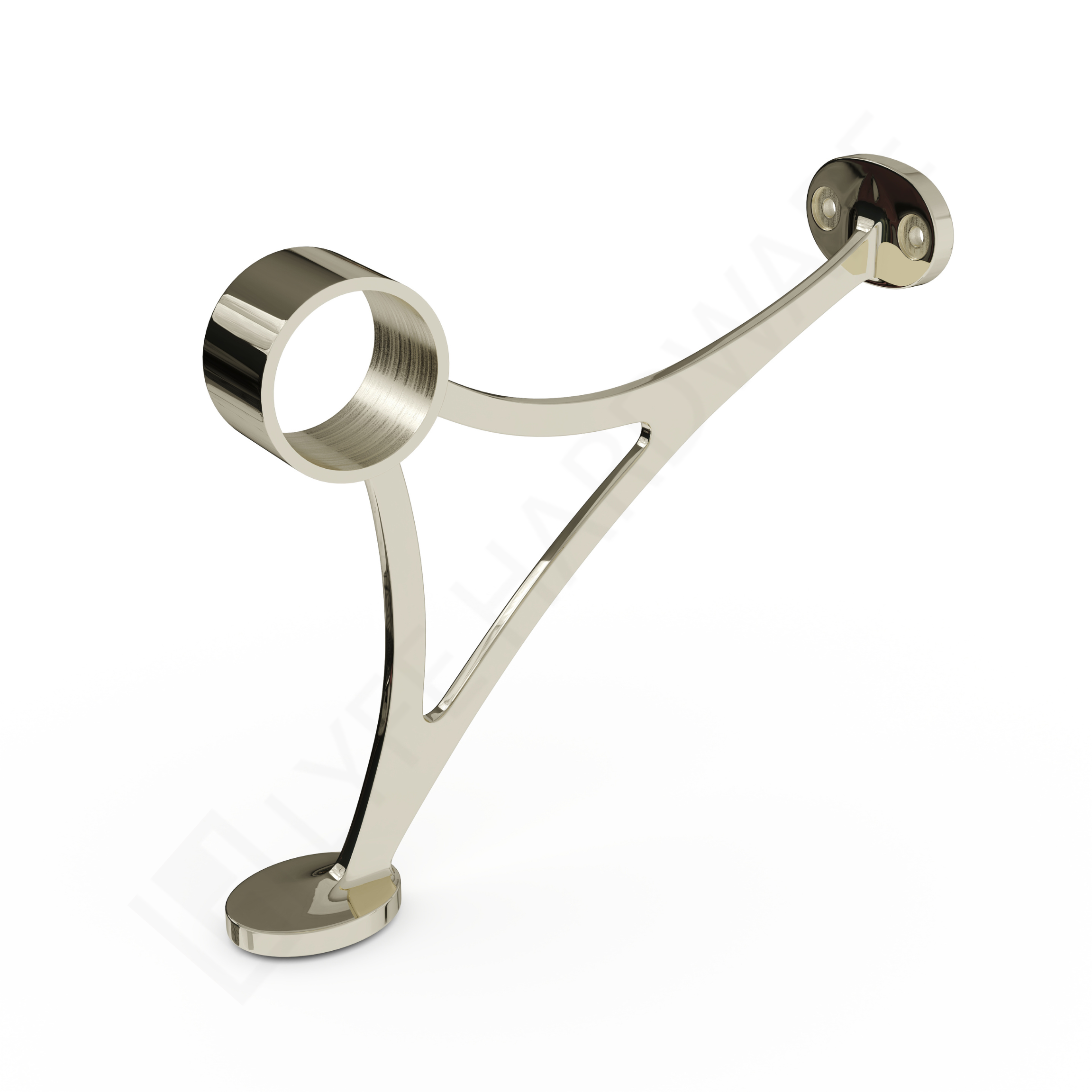

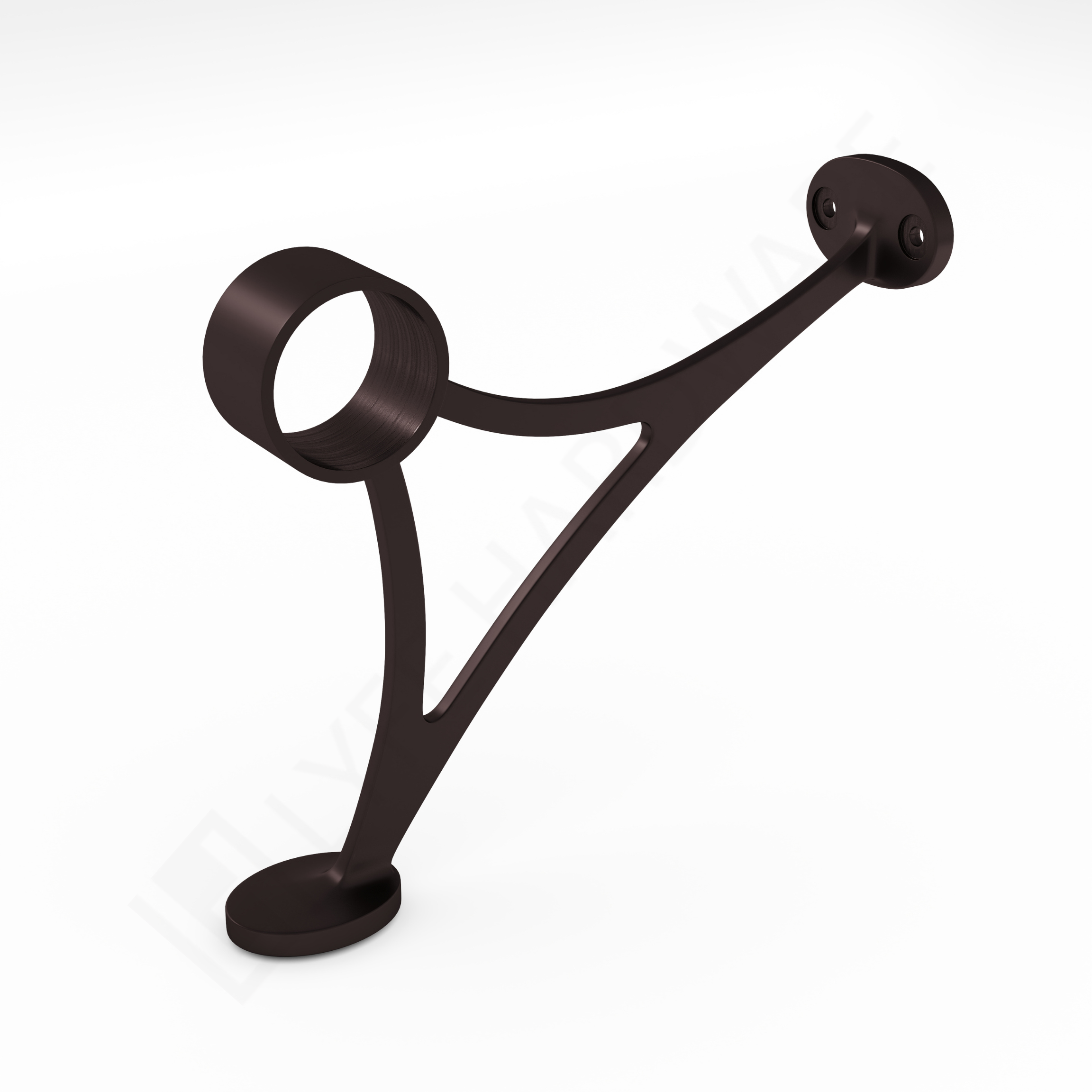

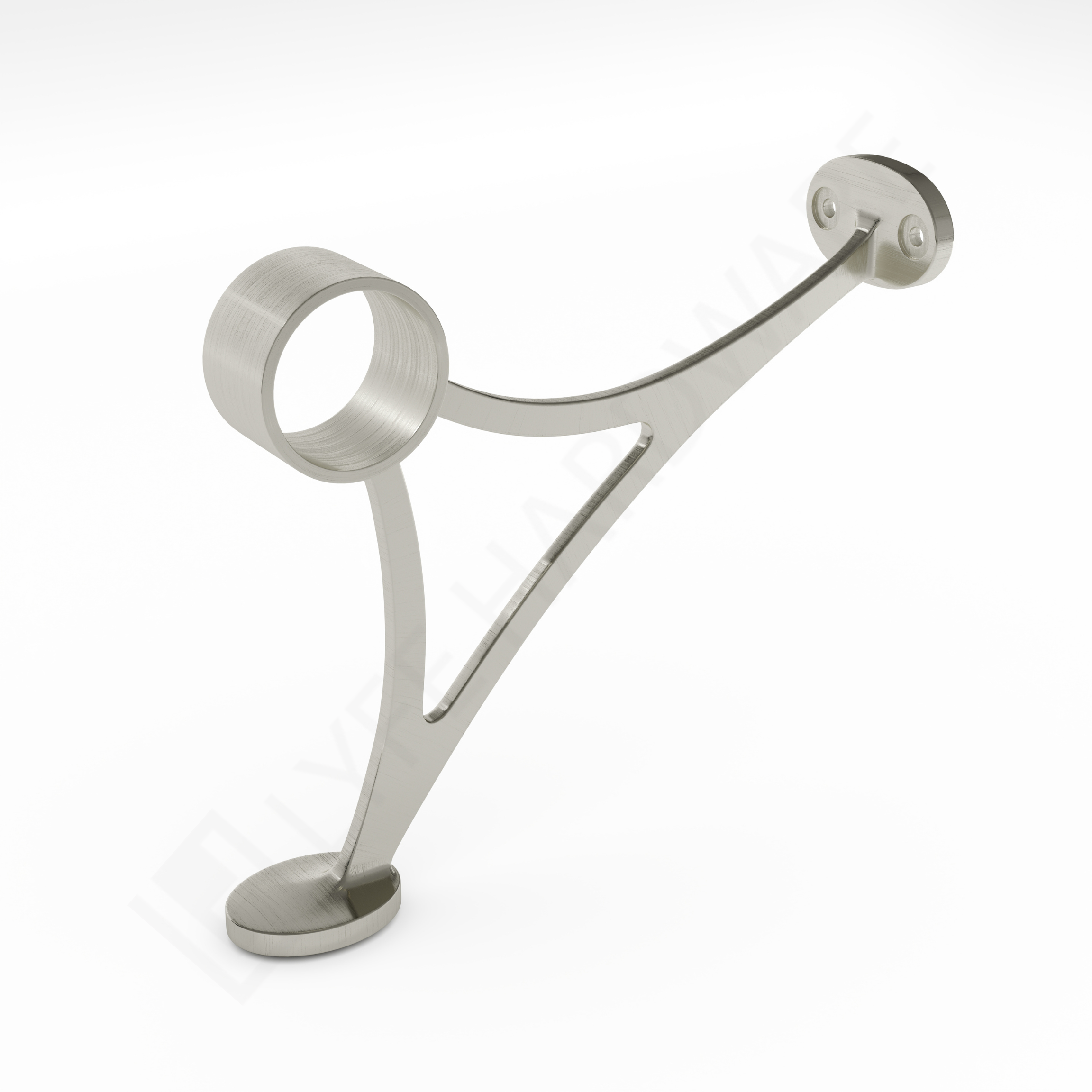

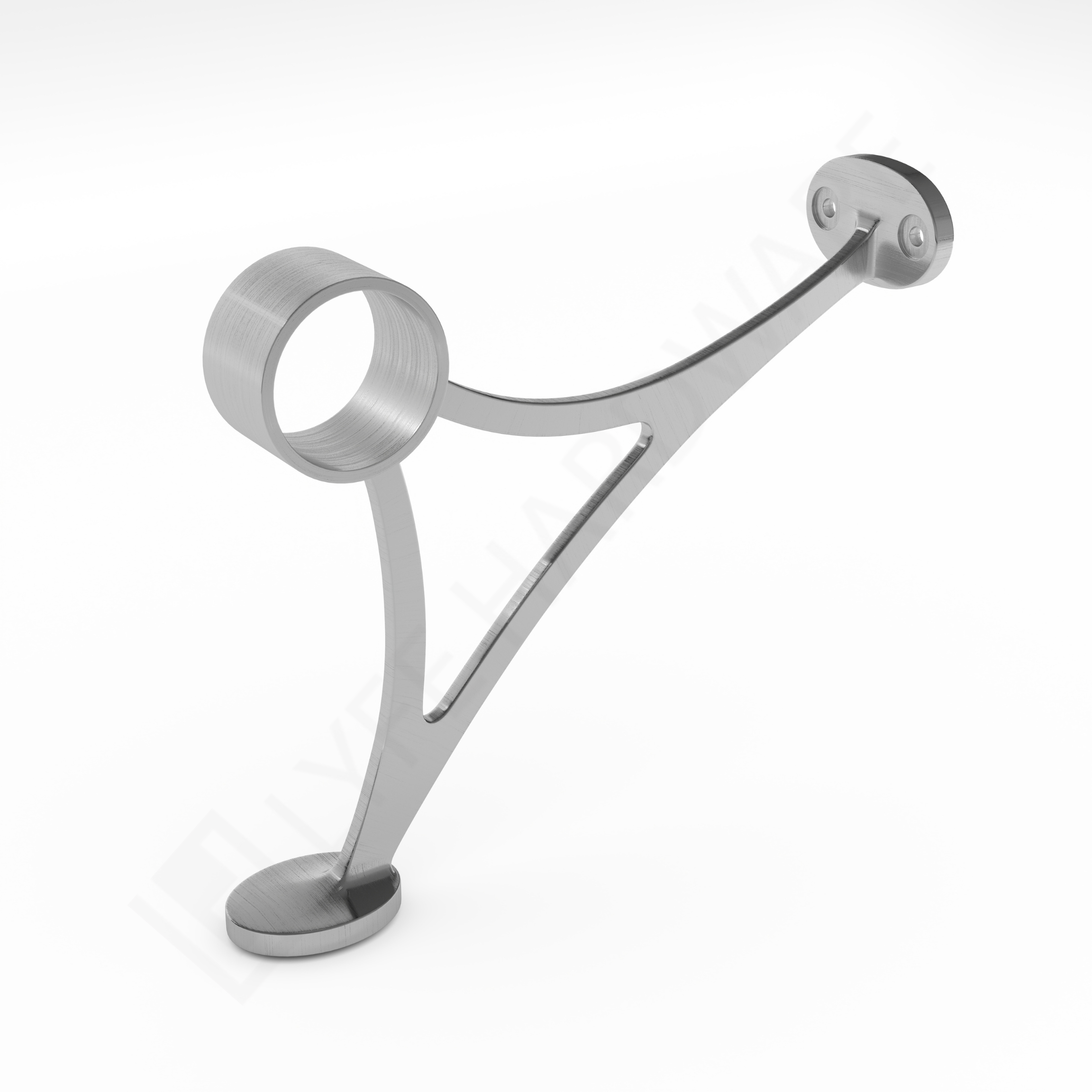

These brackets are known for their timeless look and straightforward installation. These brackets evenly distribute the weight between the bar-mounted and floor supports, ensuring reliable stability for your bar rail.

Each bracket stands approximately 6" off the floor and extends 6"-7" from the bar facing, offering both a strong build and a refined design. For optimal support, place brackets at both ends of the tubing and every 4 feet along the rail.

These brackets attach to the front of the bar while the foot rests on the floor, making them an ideal solution for those who prefer floor support without drilling into the surface.

Features
• Made from premium metals
• Available in different sizes and finishes
• Easy installation—mounts to the bar face, foot rests on the floor
• Recommended placement: at both tubing ends and every 4-foot increment
• Includes all necessary mounting hardware

Installation Instructions

1. Measure & mark holes for mounting screws.
2. Drill holes in the bar wall and insert wall anchors.
3. Attach brackets to the face of the bar with the mounting screws.
4. Secure tubing to bracket by fastening set screw through the hole in the bottom.

For38mm( 1.5" OD)

• Bracket Width: 182mm(7.18”)
• Bracket Height: 158mm(6.22”)
• Opening Diameter: 38mm( 1.51”) (for 1.5” OD tubing)
• Wall to Center of Tubing (Horizontal Center Point): 159mm(6.26”)
• Floor to Center of Tubing (Vertical Center Point): 135mm(5.30”)

Tech Specs 38MM(1.5")

For 51mm(2" OD)

• Bracket Width: 179mm(7.04”)
• Bracket Height: 177mm(6.96”)
• Opening Diameter: 51mm(2.01”) (for 2” OD tubing)
• Wall to Center of Tubing (Horizontal Center Point): 150mm(5.91”)
• Floor to Center of Tubing (Vertical Center Point): 148mm(5.83”)

Tech Specs 51mm(2")

Includes

• 2pcs - #12 x 2” PFH Mounting Screw
• 1pc - #8 x ¾” Self-Drilling Set Screw
• 2pcs – Plastic Wall Anchors

Care & Maintenance

The care required for your bar foot rail will depend on the chosen finish. Over time, you may notice typical wear such as scuffs, scratches, or dirt. To keep your foot rail looking its best, follow our Cleaning & Maintenance Guide, which provides detailed instructions for cleaning and maintaining all finishes.

Please note: Our tubing and components, like brackets and endcaps, might have slight color differences when they arrive. This is completely normal and will even out naturally over time as the brass develops a beautiful patina—a natural process that happens with exposure to air and moisture.
