Bar Foot Rail Kits
Foot rails at the bar are the tonic water in a G&T, the salt in peanuts.
Encourage your guests to rest their feet and linger with one of our extensive and exclusive selection of bar foot rails. Lyfe Hardware offers a fine selection of bar rail finishes and premium metal hardware that will bring a dull bar or kitchen to life. Elevate your bar by choosing from our luxurious & ready to install range
Products list
Custom Polished Brass Bar Foot Rail Kit
Custom Satin Brass Bar Foot Rail Kit
Custom Oil Rubbed Bronze Bar Foot Rail Kit
Custom Brushed Stainless Steel Bar Foot Rail Kit
Custom Antique Brass Bar Foot Rail Kit
Custom Matte Black Bar Foot Rail Kit
Custom Antique Copper Bar Foot Rail Kit
Custom Antique Bronze Bar Foot Rail Kit
Custom Polished Stainless Steel Bar Foot Rail Kit
Products list
Custom Polished Brass Bar Foot Rail Kit
Choose your option
Custom Satin Brass Bar Foot Rail Kit
Choose your option
Custom Oil Rubbed Bronze Bar Foot Rail Kit
Choose your option
Custom Brushed Stainless Steel Bar Foot Rail Kit
Choose your option
Custom Antique Brass Bar Foot Rail Kit
Choose your option
Custom Matte Black Bar Foot Rail Kit
Choose your option
Custom Antique Copper Bar Foot Rail Kit
Choose your option
Custom Antique Bronze Bar Foot Rail Kit
Choose your option
Types of Brackets
Bar foot rails are crucial yet often overlooked elements that significantly enhance your bar's visual appeal. You'll discover a variety of bracket styles that can transform the look of both commercial and residential bars. Choose your brackets based on the aesthetic effect you aim to achieve, their functionality, and the specifics of their installation process.

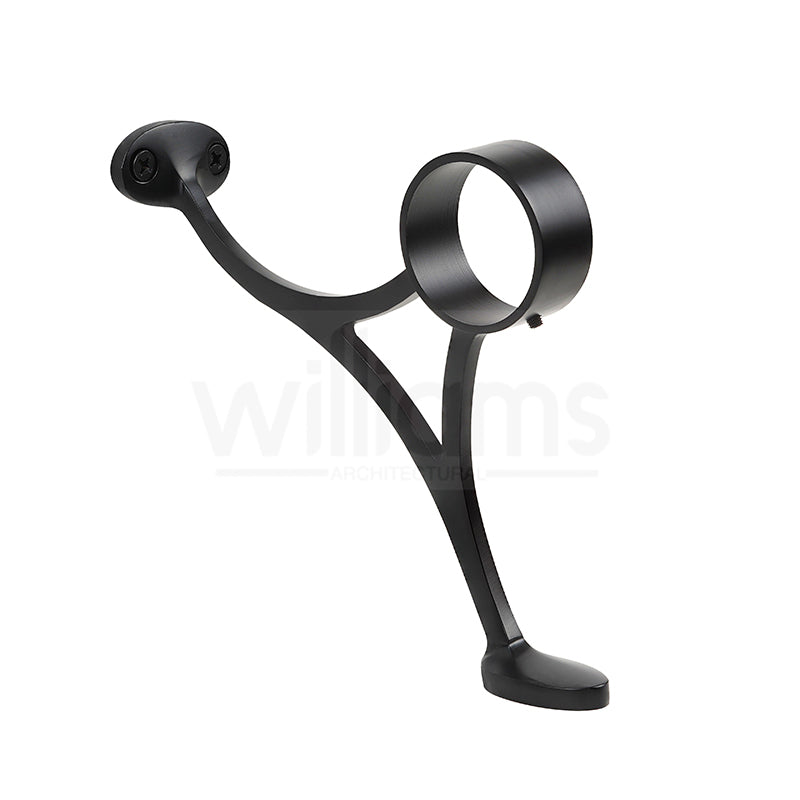

Combination Brackets
Preferred by many bar owners, these brackets offer sturdy mounts for both face and floor, providing reliable support in high-traffic areas. They can be installed easily without the need for back-bar access. The brackets maintain a consistent six-inch elevation from both the floor and bar face, with elbow joints at the corners for seamless integration.

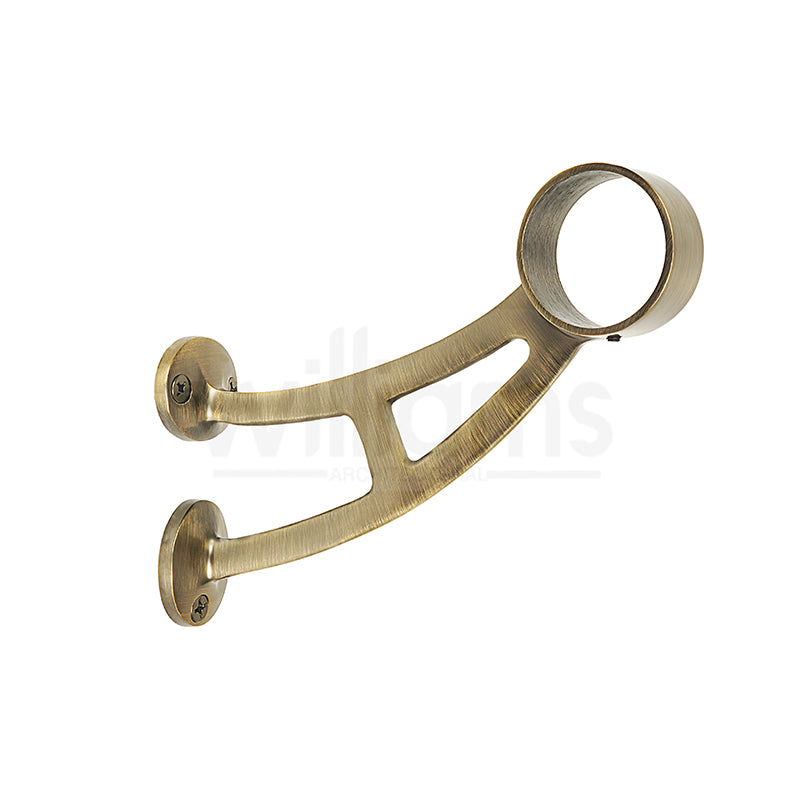

Bar Mount Brackets
Bar mount brackets attach right to the front of your bar. They are the simplest to clean under and help make your bar look unique. A big advantage of using bar mount brackets is that you can set them at any height you need, which is great if you need brackets taller than the usual 6 inches. Most other brackets are fixed at a certain height from the floor, but these can be adjusted. To install these brackets, you must be able to get to the back of the bar because they need a threaded bolt at the back for support.

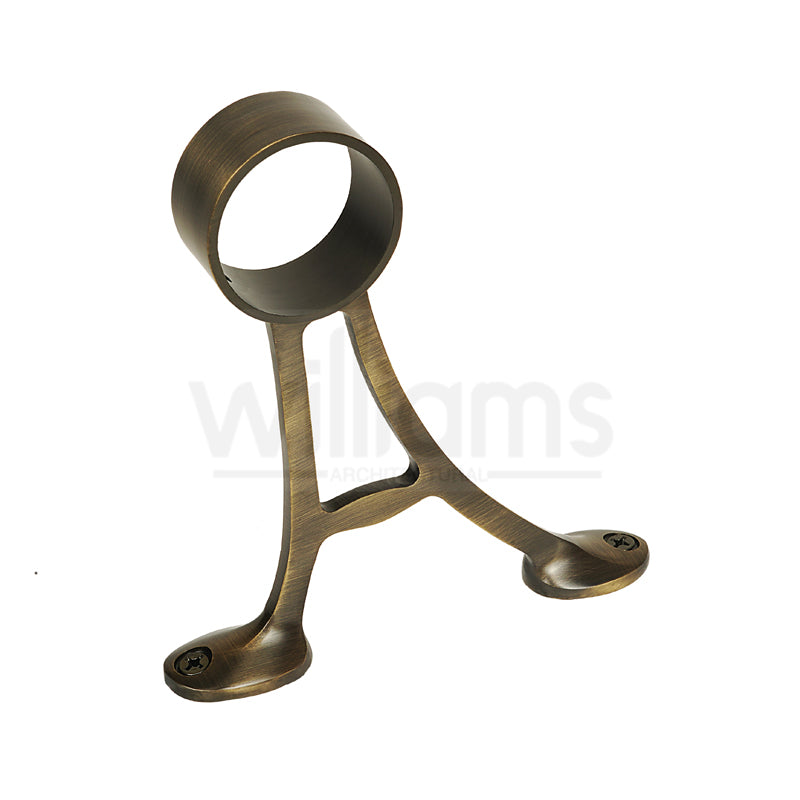

Floor Mount Brackets
If you thought that floor mount brackets are attached to the floor, you're right! Like combination brackets, they don't require access to the back of the bar for installation. Floor mount brackets also offer the flexibility to position them nearer or further from the bar's facing as needed. Using a floor mount bracket minimizes any risk of damaging the bar that could occur with direct rail mounting. When installed correctly, the bar rail will be positioned 5.5 to 6 inches above the floor.

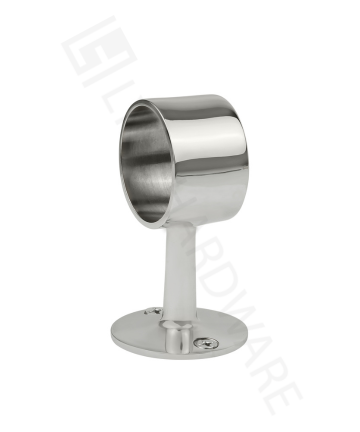

Center Post Brackets
Center post brackets are great for use as either a bar foot rail or bar handrail. Their low-profile design makes them extra versatile. These brackets are approximately 4 inches in total height. Center post brackets sit approximately 3.5 inches from the floor, bar facing, or wall that they are mounted upon to the center of the tubing. They can fit in tight spaces, be used as bar handrail, or be used as foot rail for bars with lower chairs or stools.

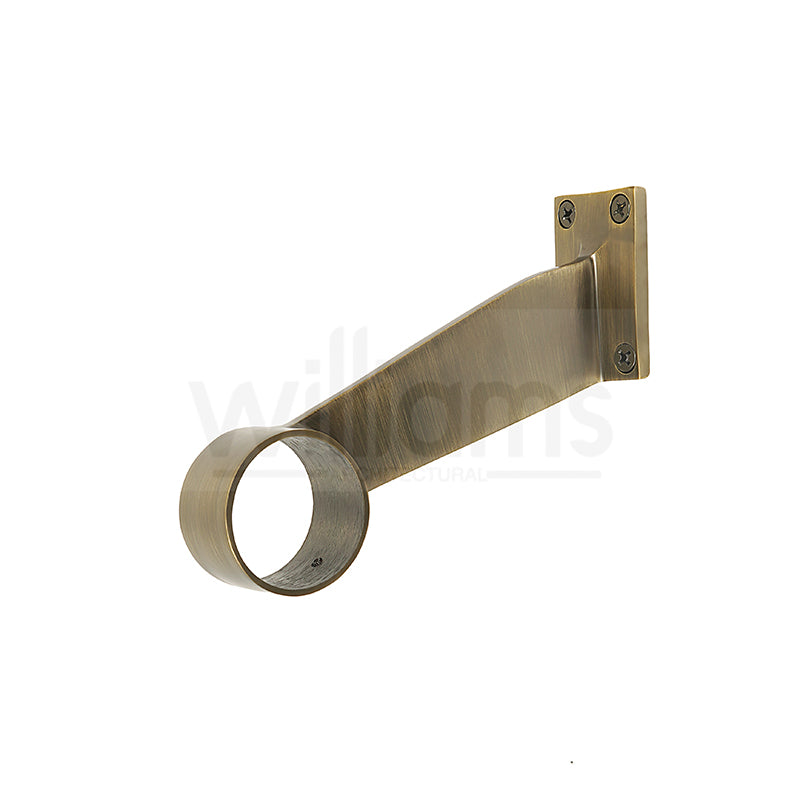

Contemporary Brackets
Contemporary brackets are our most adaptable style, offering a sleek, modern look for either bar-front or floor mounting. They install with three screws and a threaded bolt from behind for bar setups, or just with screws for floor setups. These brackets are perfect for exploring different mounting options for your bar rail.
Have a custom request?
Standard kits not working for you? You may have a special layout that doesn’t fit the mold, but we have you covered. We will custom design a kit for you that will bring a balance of functionality and style. We are happy to offer custom lengths, custom rolls, quick-turnaround times and exclusive finishings that you may not find anywhere else. Get in touch with info@hardwarefittings.com.au
